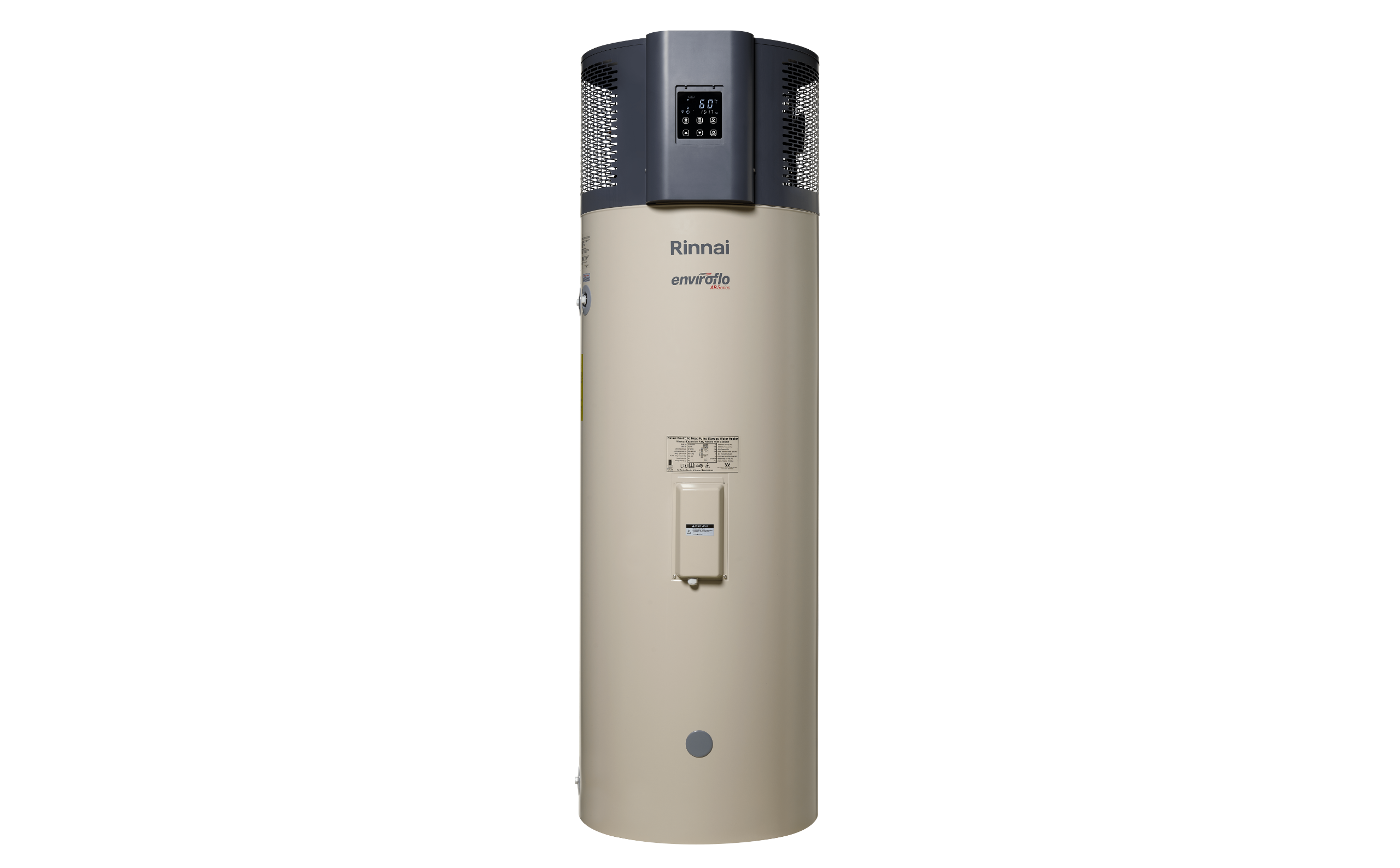

Rinnai Enviroflo 300L AR Series Heat Pump EHPA300VM

Warranty Information

Proudly designed and built in Australia, the Rinnai Enviroflo AR Series Electric Integrated Heat Pump hot water system is your go-to solution for dependable and efficient hot water.

Enjoy the benefits of the single element boost feature, guaranteeing hot water availability even during peak usage or cold weather.

The Enviroflo AR Series is an eco-friendly choice, utilising R290, a sustainable refrigerant, and featuring PV compatibility that allows you to harness solar energy for enhanced efficiency and savings. Built to endure Australia’s tough climate, these systems can handle water pressures up to 1000kPa, ensuring long-lasting performance.

Their lightweight design also facilitates quick and safe installation, providing you with hot water with minimal hassle and environmental impact.

  • Innovative controller to maximise hot water availability while using more than 70% less energy*
  • High efficiency R290 refrigerant with a low Global Warming Potential of just 0.02.
  • Multiple operating modes (Standard/ECO/Hybrid/ Electric/Vacation).
  • Standard and hard water anode options available.
  • Operates in ambient air conditions ranging from -7°C to 45°C.
  • Built in anti-frost function to protect the evaporator in colder climates.
  • Inbuilt electric element to ensure you always have a reliable supply of hot water.
  • Auto disinfection preventing the potential growth of legionella.
  • Higher compressor performance improves water heat up time.
  • Auto restart function - in the event of a power outage it will automatically restart once the power is re-instated.
  • Can be networked with solar PV for enhanced efficiency and savings.
  • Option to run only at off-peak times, when the electricity cost is lower.
  • The built in Wi-Fi module allows for convenient control from anywhere.
Model Description A
Diameter
(mm)
B
Hot Outlet
(mm)
C
Cold Inlet
(mm)
D
Height
(mm)
Empty
Weight
(Kgs)
Sizing Guide
EHPA300VM 300L AR Series Heat Pump 652 1259 116 1925 128 Up to 6
People
3 Bathrooms – 4 Bedrooms
EHPA300VMH 300L AR Series (Hard Water) Heat Pump
EHPA340VM 340L AR Series Heat Pump 652 1429 116 2095 138 Up to 7
People
3 Bathrooms – 5 Bedrooms
EHPA340VMH 340L AR Series (Hard Water) Heat Pump



Technical Information

EHPA300VM/ EHPA300VMH

EHPA340VM/ EHPA340VMH

Net Weight/Filled Weight (kg) 128/428 138/478
Tank Volume (L) 300 340
Sound Level 45 dB(A)
Ambient Temperature Limits (for heat pump operation – element will operate beyond these limits) (°C) -7°C to 45°C
Ingress Protection IP24
Storage Cylinder – Hot Outlet and Cold Inlet Connections ISO 7.1 ¾” RP
Storage Cylinder – PTR valve connection ISO 7.1 ½” RP
Pressure and Temperature Relief (PTR) supplied valve settings/ratings 1000 kPa / 10kW
ECV Fitted Fit PLV if mains pressure exceeds 680 kPa
Recommended PLV pressure rating 500 kPa
ECV Not Fitted Fit PLV if mains pressure exceeds 800 kPa
Recommended PLV pressure rating 500 kPa
Refrigerant Type / Mass R290 / 380g
Rated Input Electric Element (Factory Wired) 2.4kW
Rated Input Refrigeration Module (Factory Wired) 1.2kW
Total Rated Input (To be wired by installer) 3.4kW
Maximum Energy Output (Use to size PTR) 7.5kW
Power Supply 220V-240V AC/50 Hz.
Rated Current 15 Amps
Refrigerant Circuit Maximum Pressure 3000 kPa
Coefficient Of Performance (COP) (32.6°C ambient 21.1°C cold water inlet) 8.4
Heat Output 4.4 kW
Package Size 713x713x2016 713x713x2186



Warranty*

Cylinder*

Refrigeration Components (1)

Other Components (2)

Domestic Use Parts 7 years 3 Years 1 Year
Labour 3 Years 3 Years 1 Year
Commercial Use Parts 1 Year 1 Year 1 Year
Labour 1 Year 1 Year 1 Year

*Please refer to the Warranty Booklet for more information (click here).

(1) Refrigeration Components include but are not limited to: compressor, condenser, expansion valve, heat exchanger, evaporator and associated pipe work.
(2) Other Components include but are not limited to: sensors, thermostats, valves, electric heating elements, anodes.* Inner Storage Cylinder

Product Specifications

Further Information

$3,800.00
  • Free Delivery

    Free delivery and returns

Don't forget...
Sale Off
HPS Tempering Valve with Insulation 20mm
$145.00
Sale Off
HydroBoss Leak Protection Valve
$220.00
You May Also Like...
Sale Off
Rinnai Enviroflo Heat Pump 180L - EHPT180VM
$2,660.00
Sale Off
RINNAI ENVIROFLO 215L GR SERIES EHPG215VM
$3,150.00
Sale Off
RINNAI ENVIROFLO GR SERIES EHPG280VM
$3,400.00
Sale Off
RINNAI ENVIROFLO 300L GR SERIES EHPG300VM
$3,580.00

From The Hot Water Boss...

Handy Hints and Helpful Guides

What size hot water system do I need?

While the size of the hot water system will more than likely vary depending on your specific needs, the average 4-person Australian home will need at least a 160 litre tank for a continuous electric system, or a 250-315 litre off-peak system. If you’re in the market for a gas tank, a 4-person house averages a 170 litre tank. 270-315 litre tank should be sufficient for heat-pump users.

Why is the right size system so important?

If your hot water heater is too small for your needs, you will find yourself continually run out of water. On the other hand, if your hot water system is too large for your needs, you are going to spend an unnecessary amount of energy (and therefore money) heating it. This is because your hot water system will keep maintaining the heat of your water, even when you are not using it.

Can I install this system myself?

You will need a licensed plumber to install this system.

What additional parts do I need for my new system?

At a minimum, you will need a tempering valve, pressure limiting valve, duo isolation valve and a cold water expansion valve. We have put these together in a single kit to make things easy! View our complete installation kit here

What type of hot water system is best for me?

There are so many choices! The first thing you need to consider is the type of system - electric, gas, or heat pump? We've put together some information on the different systems here.

I'm not in SEQLD - how do I choose a plumber to install?

It's important to ensure you choose the right plumber to install your hot water system. The last thing you want is a non compliant install on your brand new hot water system, which could shorten the life of the new hot water system and even void the warranty. We are often asked if a customer can install a hot water system...in all honesty the risks aren't worth it - and it's illegal! Best to call a licensed plumber to ensure it's done right.

Here's some important info to consider when choosing a plumber to install your new hot water system!

How do I calculate my hot water usage?

The first step to take in choosing a new hot water system is to calculate the hot water usage in your home. The amount of hot water each household uses will vary depending on lifestyle, appliances, and water fixtures throughout the house.
We've put together a list that will help you in estimating your household's hot water usage. See the list here!
