Rinnai

RINNAI ENVIROFLO GR SERIES EHPG280VM

$3,400.00
$3,400.00
Sale Sold out
Shipping calculated at checkout.

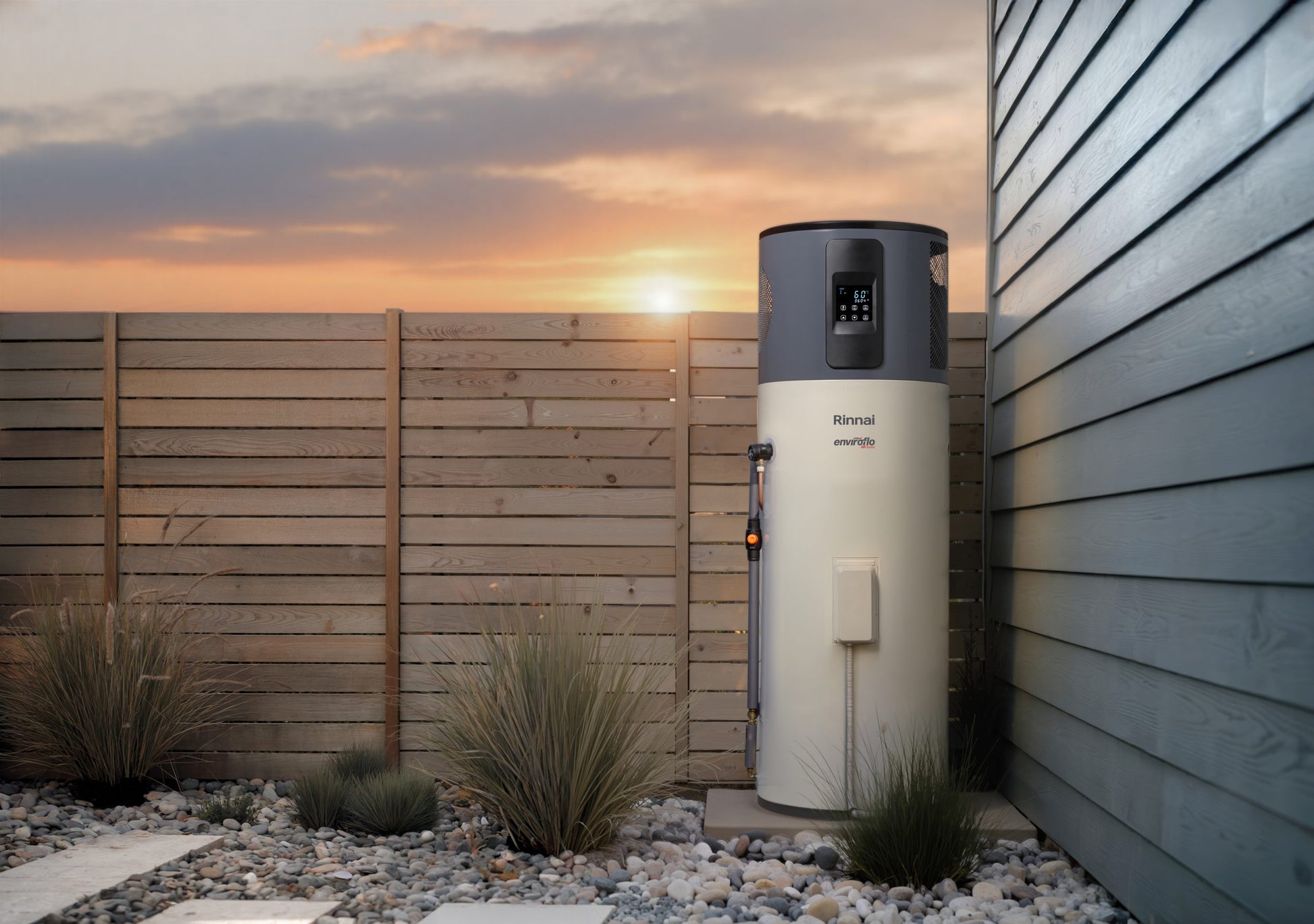

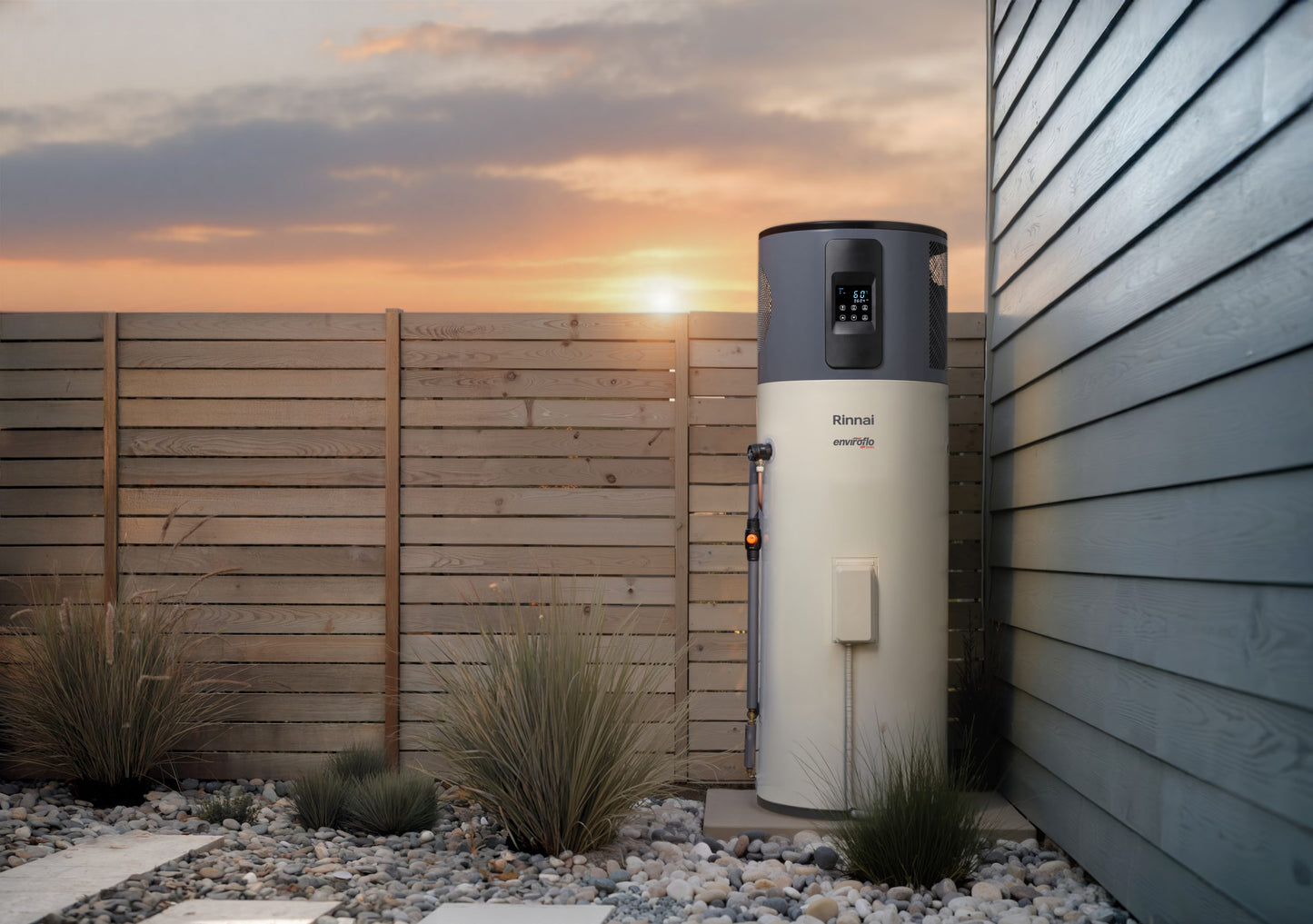

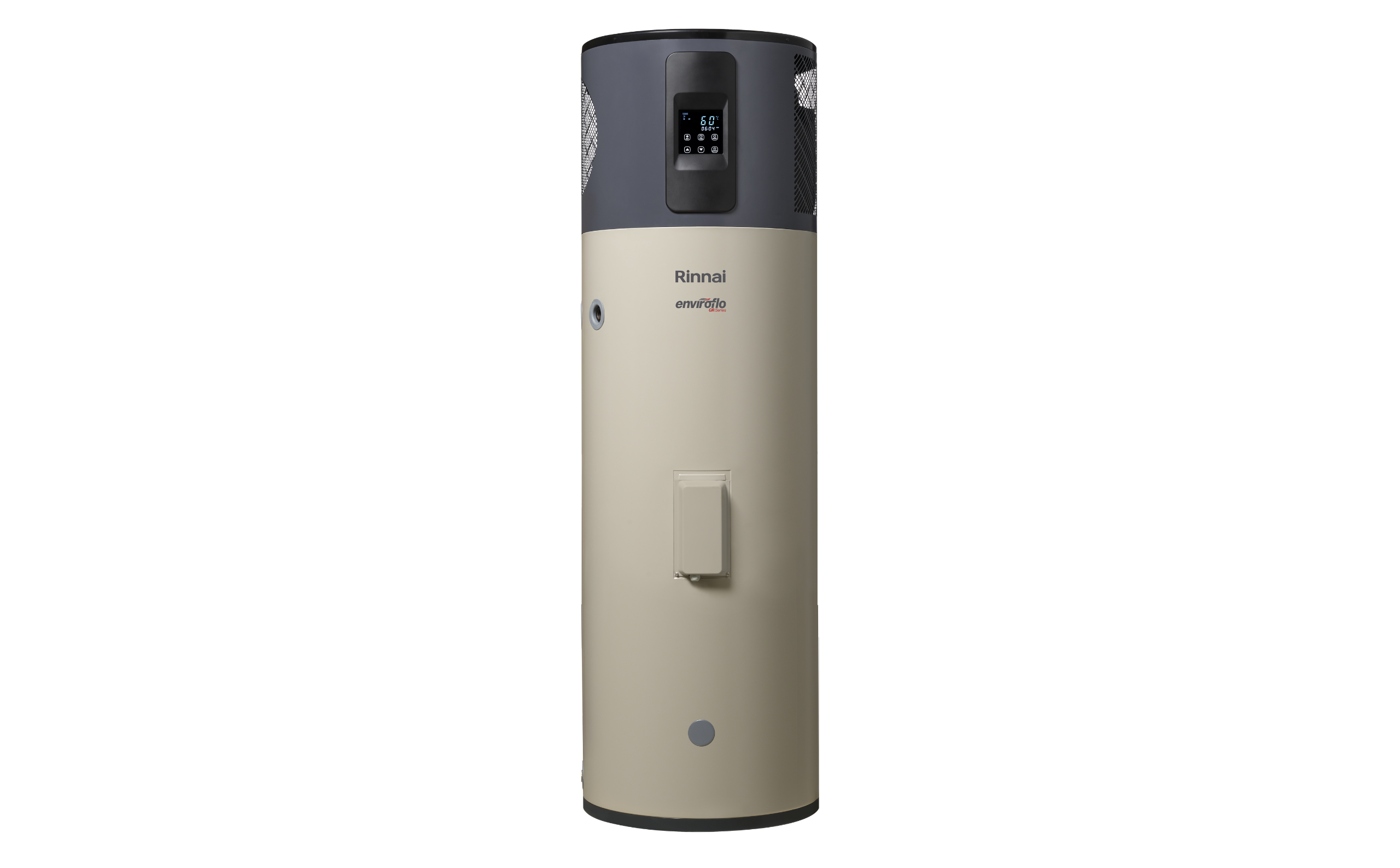

The Rinnai Enviroflo GR Series Electric Integrated Heat Pump hot water systems are your reliable choice for efficient hot water. Designed to meet a variety of installation needs across Australia, the GR Series offers capacities of 215L, 280L and 300L, making it suitable for diverse site requirements.

Featuring as standard a single element boost, you can enjoy hot water comfort, anytime. The GR Series is PV compatible, allowing for integration with solar energy systems to enhance efficiency.

Built to withstand Australia’s tough climate, these systems operate effectively under water pressures up to 1000kPa, ensuring durability and dependable performance. Plus, they utilise R290, an environmentally friendly refrigerant, making them a sustainable choice for your hot water needs.

  • Innovative controller to maximise hot water availability while using more than 70% less energy*
  • High efficiency R290 refrigerant with a low Global Warming Potential of just 0.02.
  • Multiple operating modes (Standard/ECO/Hybrid/ Electric/Vacation).
  • Operates in ambient air conditions ranging from -7°C to 45°C.
  • Designed and built with a high level of product quality, backed by over 50 years of Rinnai’s excellence in hot water.
  • Built in anti-frost function to protect the evaporator in colder climates.
  • Inbuilt electric element to ensure you always have a reliable supply of hot water.
  • Auto disinfection preventing the potential growth of legionella.
  • Auto restart function - in the event of a power outage it will automatically restart once the power is re-instated.
  • Option to run only at off-peak times, when the electricity cost is lower.
Model Description A
Diameter
(mm) 		B
Hot Outlet
(mm) 		C
Cold Inlet
(mm) 		D
Height
(mm) 		Empty
Weight
(Kgs) 		Sizing Guide
EHPG215VM 215L Enviroflo GR Series Heat Pump 640 1227 129 1875 109 Up to 4
People
2 Bathrooms – 3 Bedrooms
EHPG280VM 280L Enviroflo GR Series Heat Pump 640 1252 112 1975 120 Up to 5
People
2 Bathrooms – 4 Bedrooms
EHPG300VM 300L Enviroflo GR Series Heat Pump 652 1322 112 2055 121 Up to 6
People
2 Bathrooms – 4 Bedrooms



Technical Information

EHPG215VM

EHPG280VM

 EHPG300VM
Net Weight/Filled Weight (kg) 109/324 120/400 124/424
Tank Volume (L) 215 280 300
Sound Level 46 dB(A)
Ambient Temperature Limits (for heat pump operation – element will operate beyond these limits) (°C) -7°C to 45°C
Ingress Protection IP24
Storage Cylinder – Hot Outlet and Cold Inlet Connections ISO 7.1 ¾” RP
Storage Cylinder – PTR valve connection ISO 7.1 ½” RP
Pressure and Temperature Relief (PTR) supplied valve settings/ratings 1000 kPa / 10kW
ECV Fitted Fit PLV if mains pressure exceeds 680 kPa
Recommended PLV pressure rating 500 kPa
ECV Not Fitted Fit PLV if mains pressure exceeds 800 kPa
Recommended PLV pressure rating 500 kPa
Refrigerant Type / Mass R290 / 355g R290/395g
Rated Input Electric Element (Factory Wired) 2.4kW
Rated Input Refrigeration Module (Factory Wired) 1.1kW
Total Rated Input (To be wired by installer) 3.3kW
Maximum Energy Output (Use to size PTR) 7.0kW
Power Supply 220V-240V AC/50 Hz.
Rated Current 13.5 Amps (15 Amp plug fitted)
Refrigerant Circuit Maximum Pressure 3091 kPa
Coefficient Of Performance (COP) (32.6°C ambient 21.1°C cold water inlet’) 7.6 8.5
Heat Output 3.8 kW 4.0 kW
Package Size 725x725x1920 725x725x2020 725x725x2100



Warranty*

Cylinder*

Refrigeration Components (1)

Other Components (2)
Domestic Use Parts 7 years 3 Years 1 Year
Labour 3 Years 3 Years 1 Year
Commercial Use Parts 1 Year 1 Year 1 Year
Labour 1 Year 1 Year 1 Year

*Please refer to the Warranty Booklet for more information (click here).

(1) Refrigeration Components include but are not limited to: compressor, condenser, expansion valve, heat exchanger, evaporator and associated pipe work.
(2) Other Components include but are not limited to: sensors, thermostats, valves, electric heating elements, anodes.* Inner Storage Cylinder
