Thermann

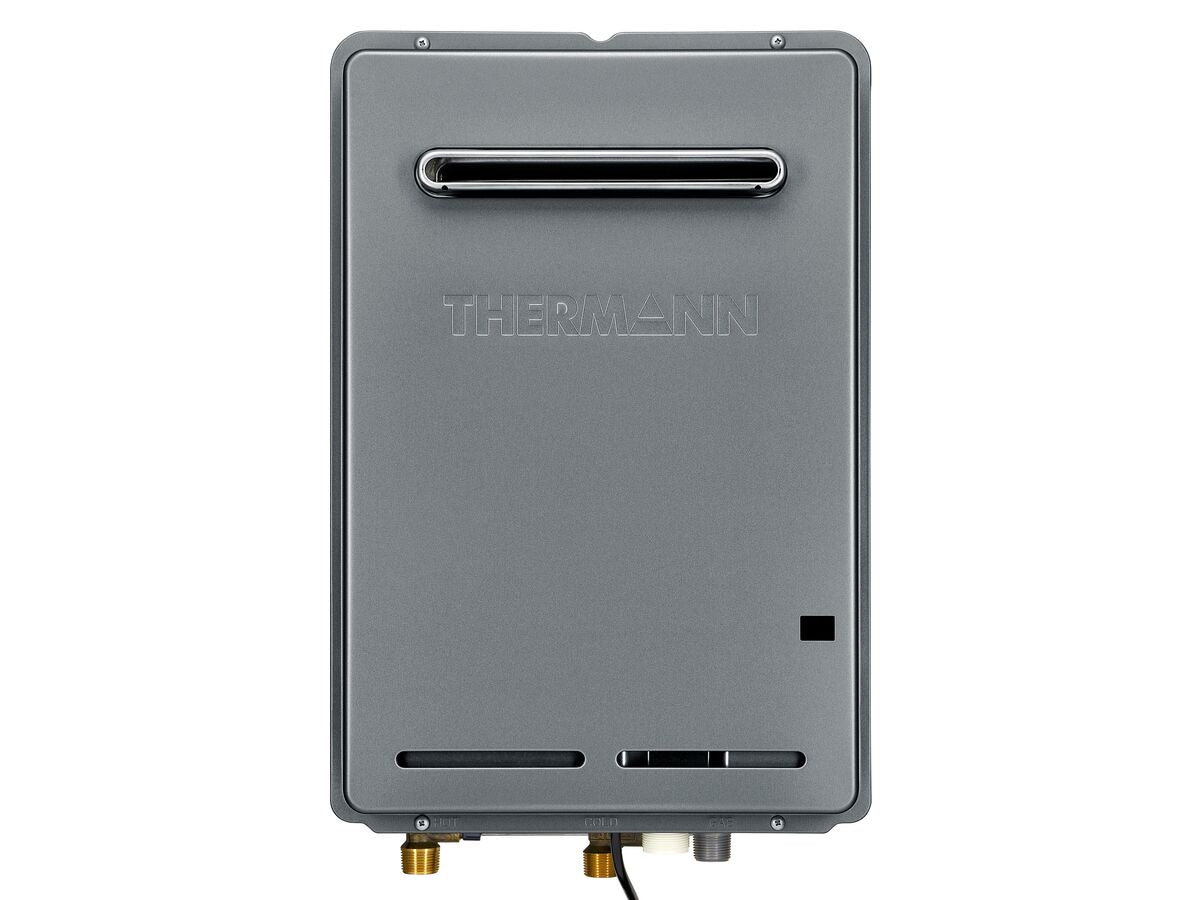

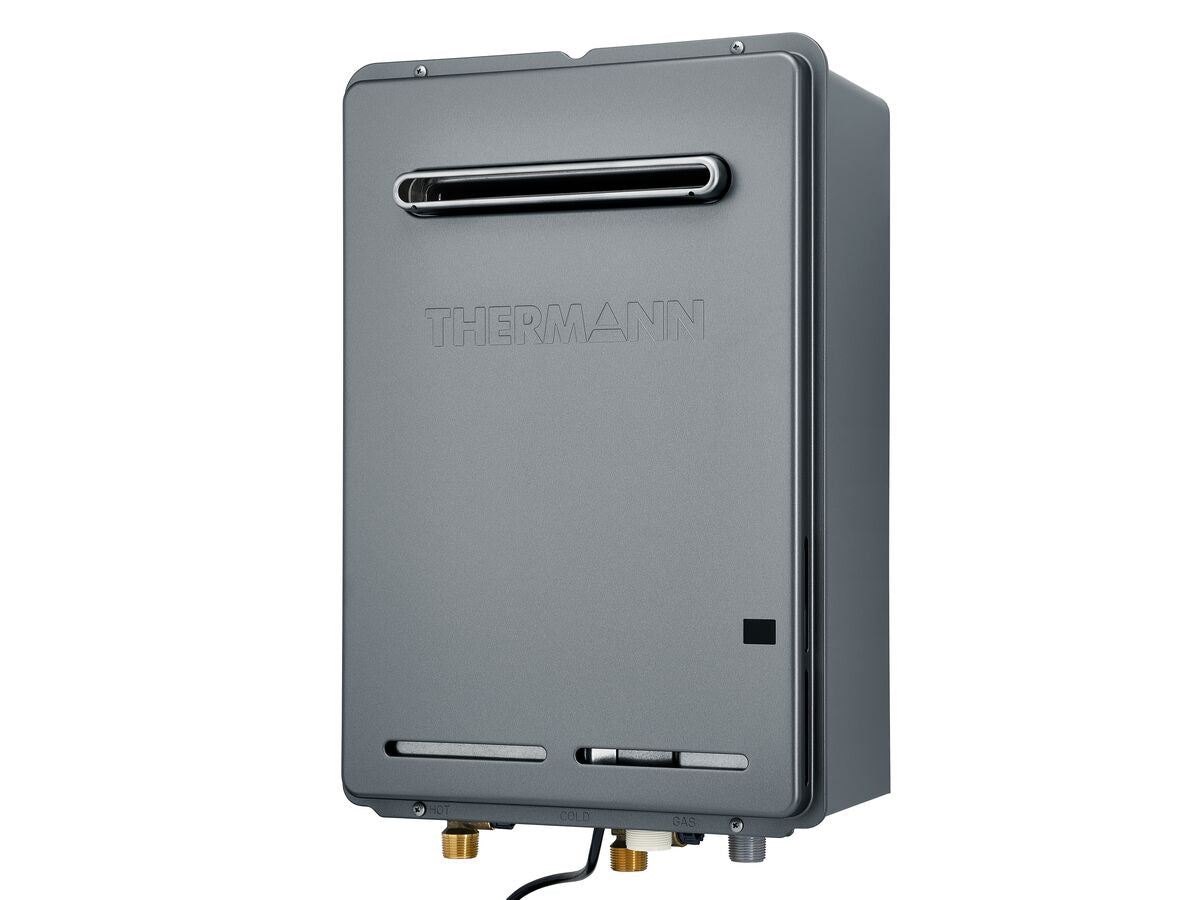

Thermann G-Series 20L 50 degree LPG Continous Flow Hot Water System
Regular price
$998.00
Regular price
$1,120.00
Sale price
$998.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Thermann G Series
The G-Series is the newest model in the Thermann Continuous Flow range and is the upgraded model from the existing Thermann 6 Star. The new G-series has been designed with Australian plumbers in mind with upgraded internal components, improving maintenance and serviceability. The new range also features a striking gunmetal finish.
Product Specifications
Size and Dimensions
| Weight (Device Only) | 14 kg |
|---|---|
| Width | 350 mm |
| Depth | 520 mm |
| Height | 200 mm |
General Information
| No. Of Outlets | 1 to 2 |
|---|---|
| Gas Type | LPG |
Technical Information
| Delivery Capacity (At 25 Deg C Rise) | 20 ltr/min |
|---|---|
| Delivery Capacity (At 40 Deg C Rise) | 13.2 ltr/min |
| Continuous Flow Unit - Gas Consumption | 158 MJ/h |
| Gas Inlet Connection Male Thread | R3/4" (20mm) |
| Cold Water Connection Male Thread | R3/4" (20mm) |
| Hot Water Connection Male Thread | R3/4" (20mm) |
Pressure Information
| Continuous Flow Unit - Maximum Water Pressure | 1300 kPa |
|---|---|
| Continuous Flow Unit - Minimum Water Pressure | 70 kPa |
| Maximum Inlet Pressure | 7 kPa |
| Minimum Inlet Pressure | 2.75 kPa |
| Relief Valve Setting | 1600 kPa |
| Testing Pressure | 1.18 kPa |
Power Information
| Energy Rating | 6.8 |
|---|---|
| Input Voltage | 240 V |
| Output Current | 0.38 (Maximum) |
